Drive Herdr with a game controller

Install

Hand it to your agent, or do it yourself. Both take about a minute.

Install the herdr-gamepad plugin from https://github.com/htlin222/herdr-gamepad
into my Herdr setup on macOS. Work through it step by step and stop to tell me
whenever you need something from me:

1. Check that `herdr` is on PATH and is version 0.7.0 or newer (`herdr --version`),
   and that `swiftc` exists (`swiftc --version`). If swiftc is missing, tell me to
   run `xcode-select --install` and wait.
2. Install the plugin: `herdr plugin install https://github.com/htlin222/herdr-gamepad`
   This runs build.sh, which compiles a single dependency-free Swift binary.
3. Copy the sample config into place:
   `cp config/gamepad.toml "$(herdr plugin config-dir gamepad)/gamepad.toml"`
4. Add a keybinding to ~/.config/herdr/config.toml so I can reach learn mode:
       [[keys.command]]
       key = "prefix+g"
       type = "plugin_action"
       command = "gamepad.learn"
       description = "Gamepad learn mode"
   then `herdr server reload-config`.
5. Start the daemon: `herdr plugin action invoke gamepad.start`, then confirm with
   `herdr plugin action invoke gamepad.status`.
6. Tell me to grant Accessibility permission to the terminal that started the daemon
   (System Settings -> Privacy & Security -> Accessibility). This is only needed
   for the [input] block: arrow keys, Return/Escape/Space and scrolling. Herdr actions
   work without it. Restart the daemon after I approve.
7. Verify: `herdr plugin action invoke gamepad.learn`, and tell me to press a few
   buttons and report what names appear.

herdr plugin install https://github.com/htlin222/herdr-gamepad
cp config/gamepad.toml "$(herdr plugin config-dir gamepad)/gamepad.toml"
herdr plugin action invoke gamepad.start

Manual

Everything between plugging the pad in and forgetting it is there.

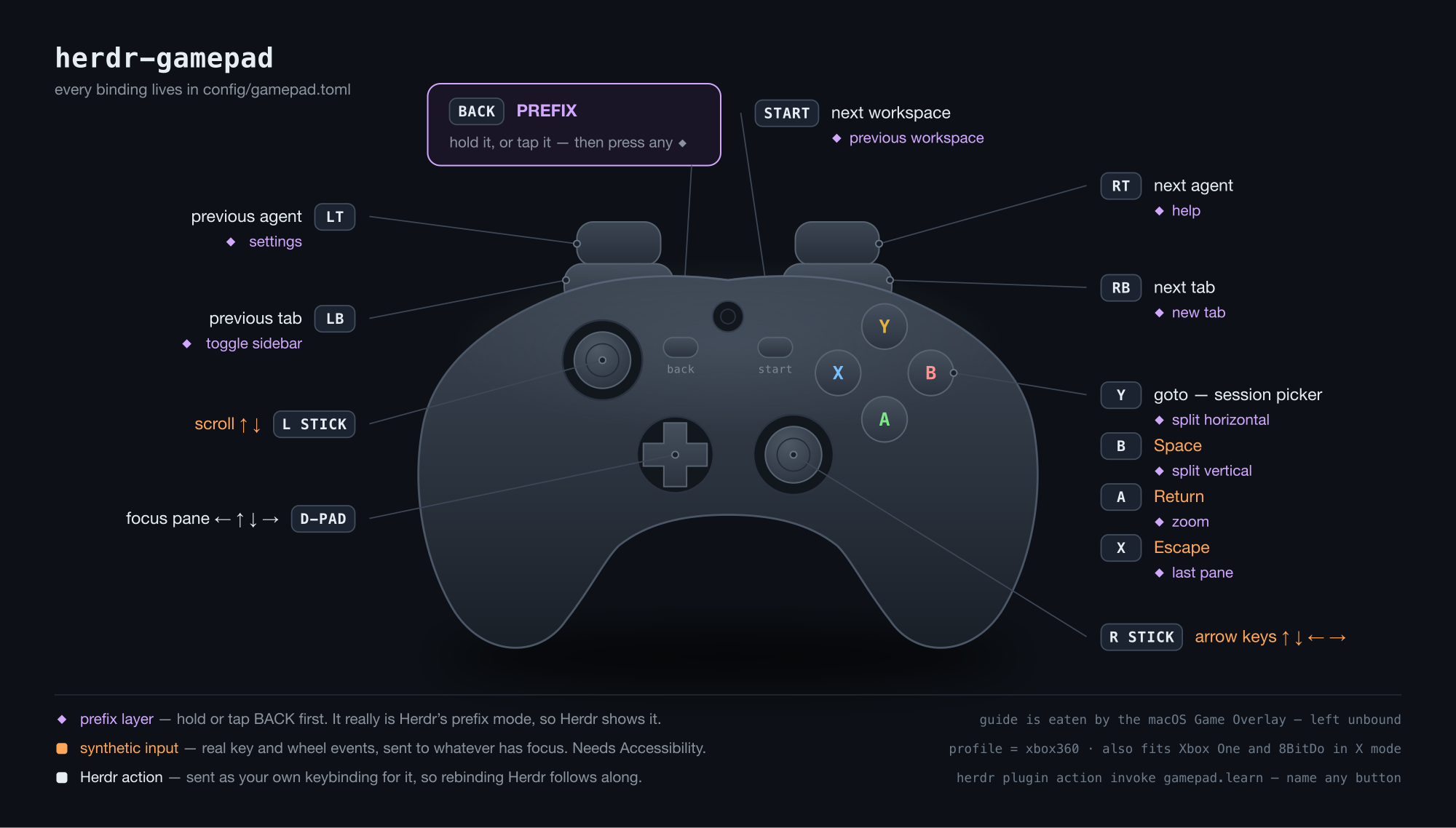

1 · Two blocks, one shape

Bindings split by who is being talked to, and both use the same shape as Herdr's own [keys]:

[herdr]                      # operations on Herdr
next_agent = "rt"
next_tab   = "rb"
focus_pane_left = "dpad_left"

[input]                      # pretend to be a keyboard or mouse
return = "a"
up = { input = "right_up", repeat = true }

Everything in [herdr] is sent as your keybinding for it, so the controller behaves exactly like the keyboard. Rebind Herdr and this follows along — nothing to update here. Bind several inputs to one behaviour with a list, exactly like Herdr: focus_pane_left = ["dpad_left", "left_left"].

2 · The prefix layer

One button gives every other input a second meaning, the way tmux's prefix key works. Despite the name, hold is reached two ways, and both are always live:

Tapping the armed prefix again backs out of it. Anything else you press spends it, so a stray tap costs you one button, not a mode you are stuck in. Set prefix_timeout_ms = 0 to switch tapping off and keep hold only. A button used as a prefix never does anything by itself.

The price: everything in the layer has to be a Herdr action you bound through the prefix, e.g. split_vertical = "prefix+b" in config.toml. Prefix mode eats the next key, so these are refused at startup, each with a message naming the binding:

Put those in the base layer instead; that is what the base layer is for.

3 · Accessibility permission

The [input] block synthesises real key and wheel events, and macOS will not let any process do that without permission:

4 · Reach the plugin from the keyboard

Herdr 0.7 does not bind keys declared in a plugin manifest, and plugin actions run without a TTY — which is why every interactive flow reports through notifications rather than printing to a terminal. Bind learn mode yourself in ~/.config/herdr/config.toml:

[[keys.command]]
key = "prefix+g"
type = "plugin_action"
command = "gamepad.learn"
description = "Gamepad learn mode"

then herdr server reload-config.

5 · Plugin actions

Run any of them with herdr plugin action invoke gamepad.<id>.

6 · Tuning

7 · When it does not work

8 · Beyond the one-liner form

Herdr has 85 socket methods (herdr api schema --json). Anything the one-liner form cannot express goes here. In params, "$focused" becomes the pane that currently has focus.

[[bind]]
button = "x"
hold   = "lb"
method = "pane.split"
params = { direction = "right", ratio = 0.5 }

Rationale

Why the design is the way it is, including the parts that look odd.

Why a gamepad at all

Herdr's job is watching several AI agents work. That is not typing — it is waiting, then glancing, then nudging. The keyboard is the wrong shape for it: you sit up, find the home row and hit a chord to answer a question that took one glance to understand. A controller is the right shape for supervision. Two thumbs, no home row, no posture. You can cycle agents from across the room.

Why send your keybinding instead of calling the API

Every [herdr] binding resolves through your config.toml and is sent as that key. Calling the socket method directly would have been easier — but then the pad and the keyboard would slowly drift apart, and Herdr's own ordering logic (which agent counts as "next") would be reimplemented here, badly. Going through the keybinding means there is exactly one definition of what next_agent means, and rebinding Herdr updates the pad for free.

Only genuinely new behaviour earns a built-in: agent_next_waiting, agent_back, agent_overview, agent_read. Those need state or more than one API call, so TOML alone cannot express them.

Why the prefix layer is Herdr's real prefix mode

A gamepad has about ten reachable buttons and Herdr has far more than ten commands, so a second layer is not optional. The obvious implementation is to fake it: hold a button, and the plugin quietly sends whatever chord the action needs.

That version was worse. Faking it means Herdr never knows a mode is armed, so it cannot show you — and a modal interface you cannot see is a modal interface you will lose track of. So the pad's prefix button sends ctrl+a for real, the instant your thumb lands. Herdr enters prefix mode, indicator and all, and the second press is an ordinary key.

The cost is a genuine constraint rather than a bug: prefix mode eats the next key, so the layer can only hold actions Herdr reaches through the prefix. Rather than let that fail silently at 3am, the daemon refuses to start and names the binding. Constraints you learn about at startup are cheaper than constraints you learn about by pressing a button that does nothing.

Why tapping works as well as holding

Holding a shoulder button while reaching a face button is a stretch on small pads and impossible one-handed. Tap-to-arm makes the layer reachable with one thumb. The risk of any modal is being stuck in it, so: tapping the armed prefix again backs out, and anything else spends it. A stray tap costs one button.

Why not the guide button

It is the obvious prefix — big, central, unused by anything else. macOS intercepts it for the Game Overlay before any program sees it. back is the next best thing, and is left unbound as an action for exactly this reason.

Why Swift, and why one binary

Reading a controller on macOS means IOHIDManager; synthesising input means CGEvent. Both are system frameworks. Swift ships with the Xcode command line tools, so build.sh is one swiftc call and the result is a single file with no runtime, no node_modules, and nothing to keep up to date. A plugin that breaks when its dependencies move is a plugin you uninstall.

Why notifications instead of terminal output

Herdr 0.7 runs plugin actions without a TTY, so anything printed goes nowhere a human will look. Every interactive flow reports through notification.show instead. This is a workaround for one version, not a preference — prefix_notify is off by default precisely because notifications are rate-limited and hidden for the focused tab, which makes them a poor second copy of state Herdr already shows.

Listed in the Herdr marketplace

The Herdr marketplace index is built from GitHub repository search. The herdr-plugin topic is the only signal it uses, the index refreshes every 30 minutes, and there is no submission form.

Publishing your own plugin takes the same two commands:

gh repo edit --add-topic herdr-plugin --add-topic herdr --add-topic gamepad
gh repo edit --description "Drive Herdr with a game controller."
